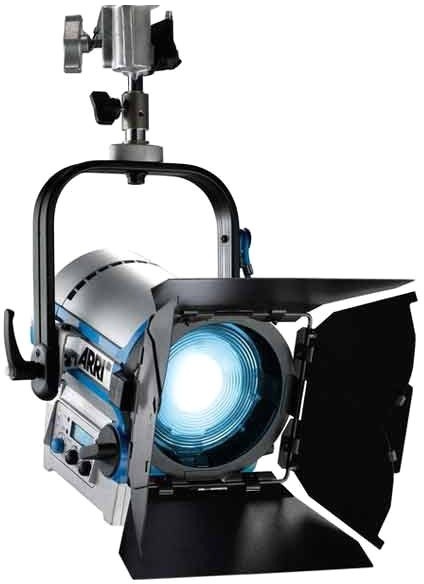

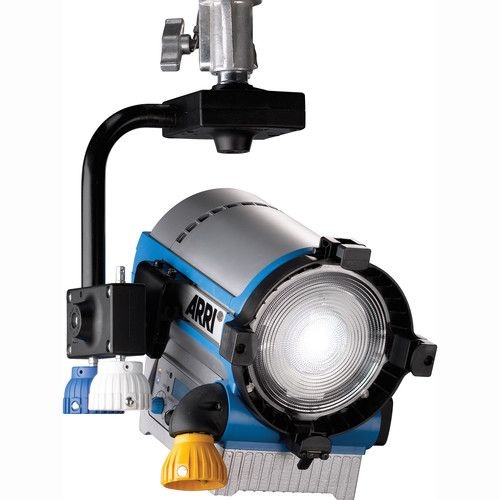

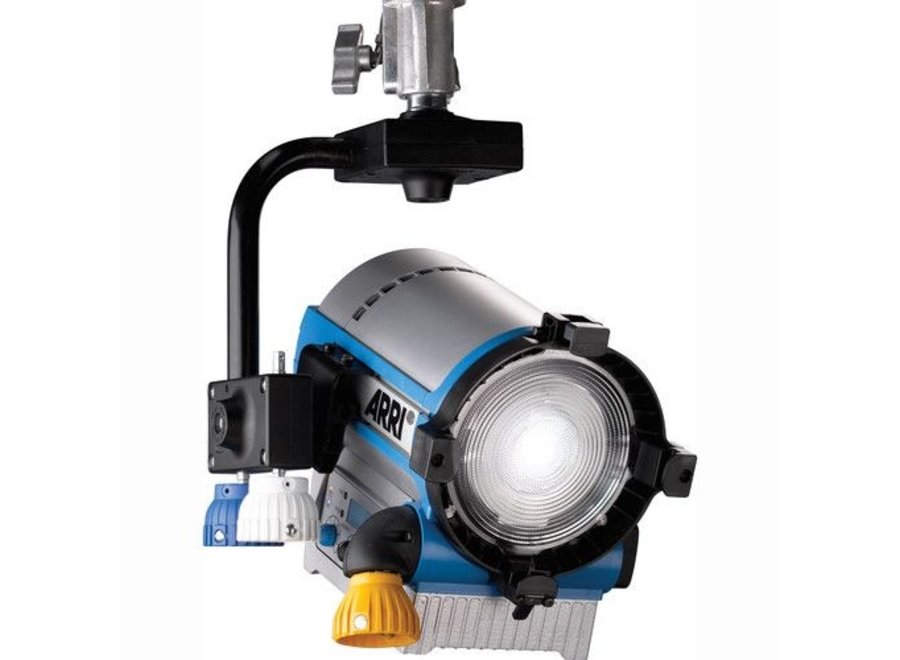

Arri L5-C LED Fresnel PO Blue/Silver

The L5-C from Arri is an RGB LED Fresnel, with which the light angle can be adjusted from 14-50°.
Article number: AR1953

Excl. VAT

Availability: On backorder

ARRI L5-C LED Fresnel PO Blue/Silver

ARRI continues to expand its L-Series with the introduction of the L5-C 5" LED Fresnel . The key characteristic of any Fresnel is flood to spot capability and the L5-C offers an impressive beam angle adjustment of 14-50°.

The 100-0% dimmable L5-C is a "fully tunable" white light source, allowing you to match existing fixtures with color temperatures from 2,800K to 10,000K. The on-board controller allows full minus green to plus green adjustment as well as RGB+W color gamut color mixing with hue and saturation control, enabling matching of specific shades and skin tones. All functions can be controlled via DMX, an ideal feature for broadcast studios, while RDM permits monitoring of the light's status.

The L5-C produces the equivalent of a 450W tungsten light while drawing only 115W for a savings of up to 75% over traditional fixtures. And low draw and heat means lower HVAC costs in the studio and a quick return on investment. You can run about fifteen L5-Cs from a 20A, 120V outlet as opposed to three or four 500W tungsten fixtures. Power options include the L5-C's 90 - 250 VAC on-board power supply or 22-36 VDC battery options. This version of the L5-C has a silver/blue finish.

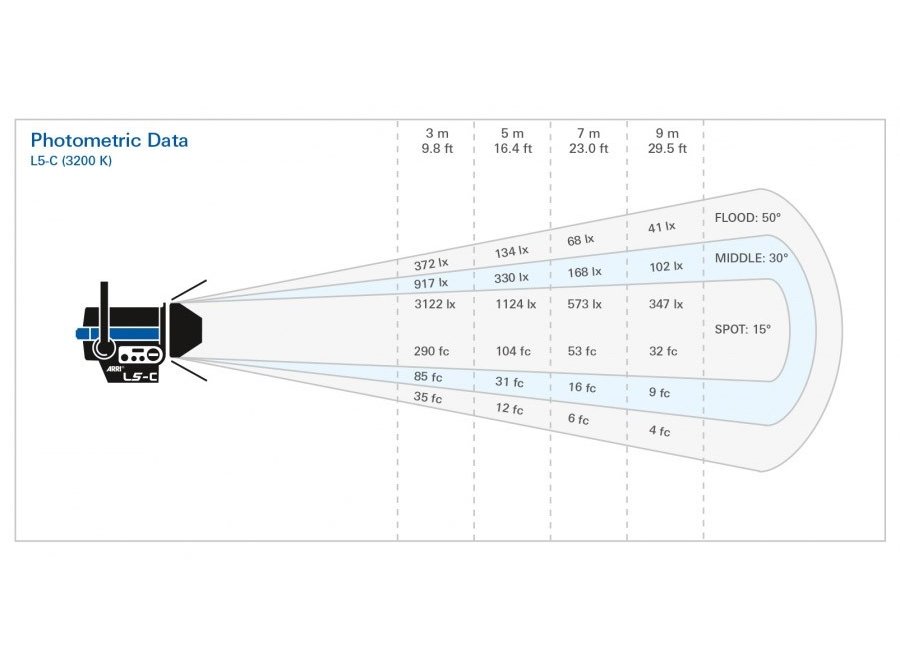

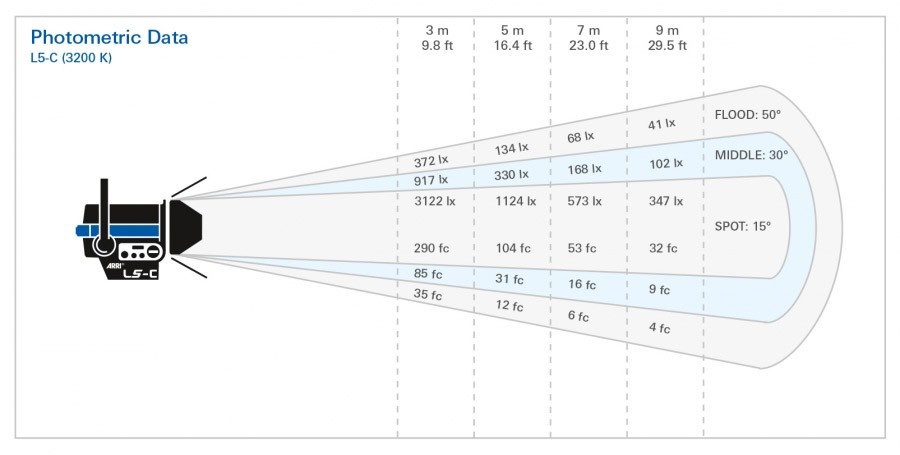

Beam Angle 14 to 50°
Color Temperature 2800 to 10,000K ± 100K (with 200K Shift over Lifetime)
Color Accuracy Standar CRI 95 at 3200K
CRI 95 at 6600K
Cooling System Fan
Dimming: Yes, 0 to 100%
Display: None
Expected Lamp Life 50,000 Hours
Fixture Dimensions Flood: 15.5 x 10.9 x 11.0" / 394.0 x 278.0 x 280.0 mm (Including Yoke)
Spot: 15.5 x 10.9 x 14.7" / 394.0 x 278.0 x 373.0 mm (Including Yoke)
Fixture Weight: 11.2 lb / 5.1 kg
DMX Connector 5-Pin XLR
Service Connector Mini-USB
Lens Diameter: 5.39" / 137 mm
Fixture Mount: Combination 1-1/8" Stud and 5/8" Receiver
Accessory Mount: None
Remote Control Type: DMX
AC Input Power: 90 to 250 VAC, 50 / 60 Hz
DC Input Power: 22 to 36 VDC
Power Source: AC Adapter, External Battery
Max Power Consumption: 450 W
Cable Type: powerCON to NEMA 5-15
IP Rating IP20
Operating Temperature: -4 to 113°F / -20 to 45°C


  • 1 x ARRI L5-C 5" LED PO Fresnel (Silver/Blue) Baby 5/8" / Junior 1-1/8" Combo Pin
    2 x 1 Year Limited Warranty
