Product description

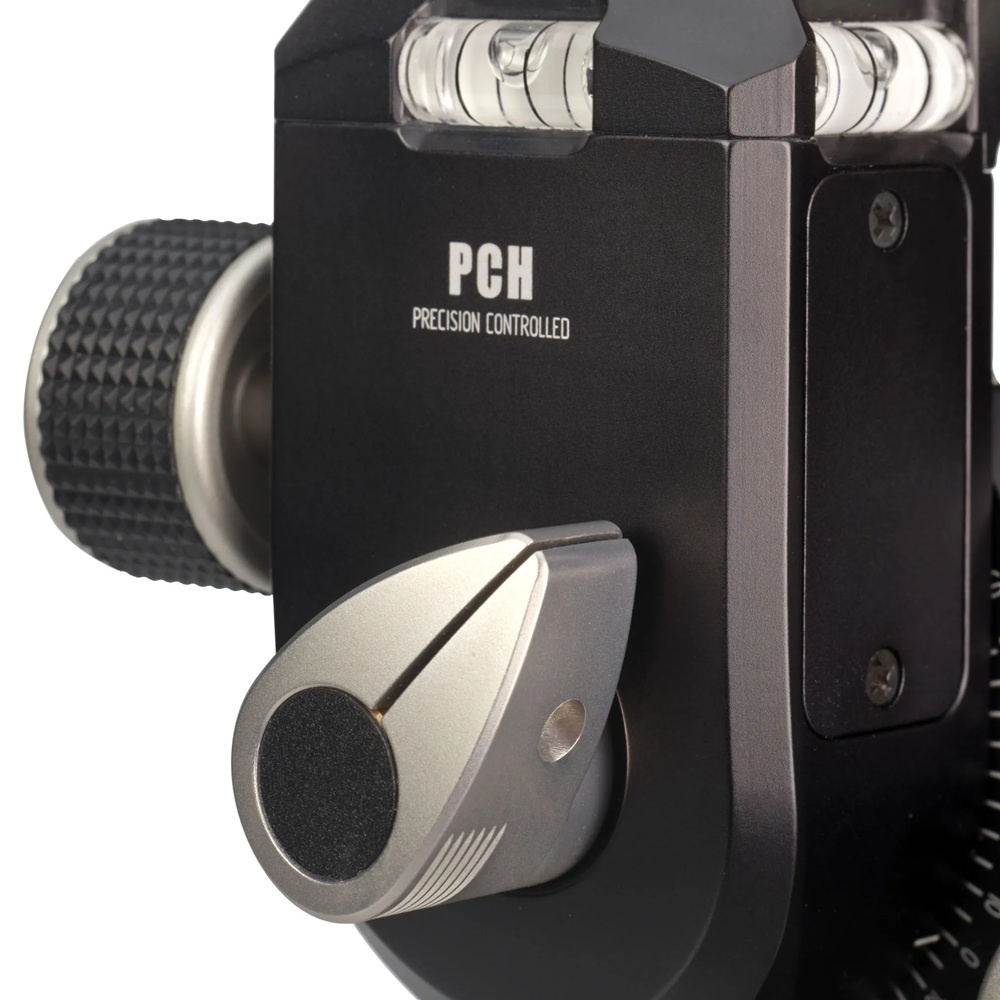

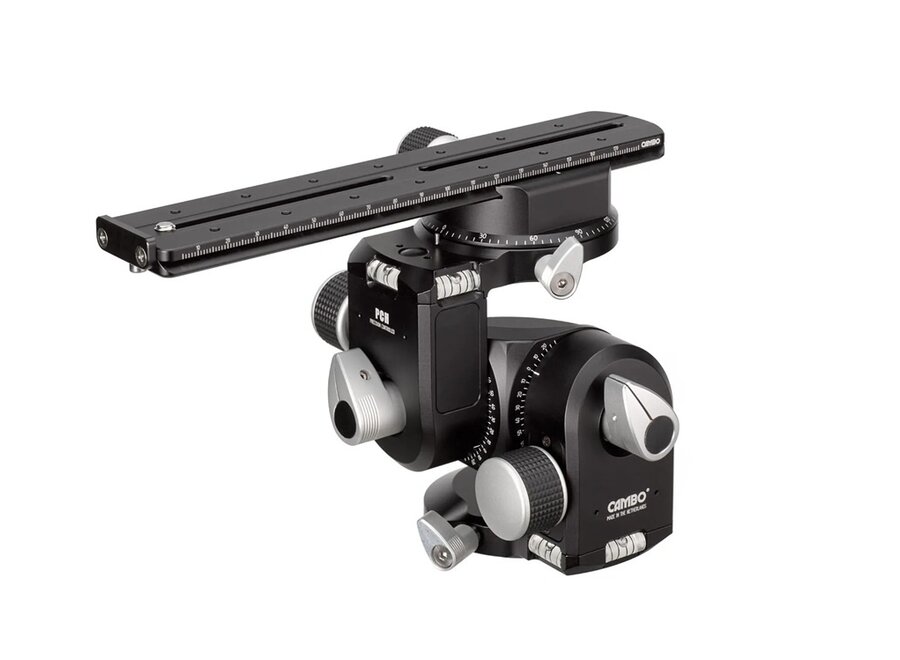

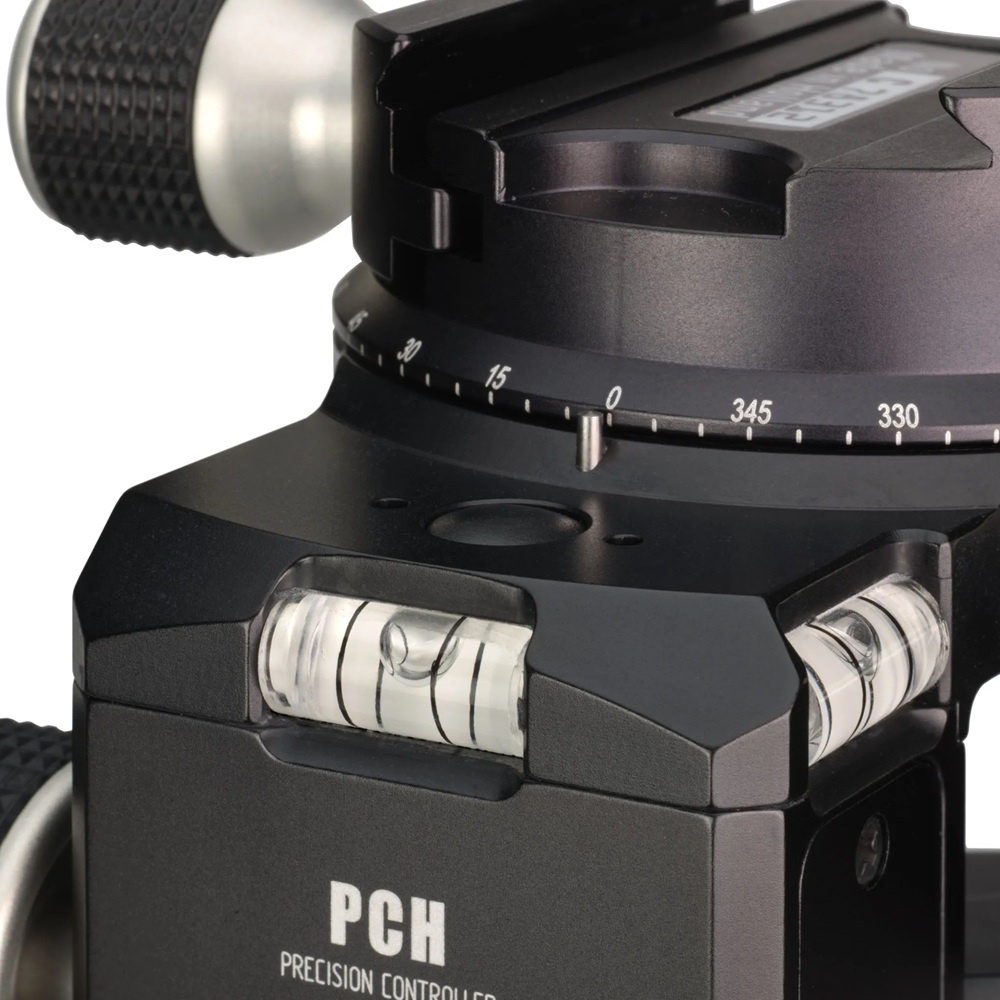

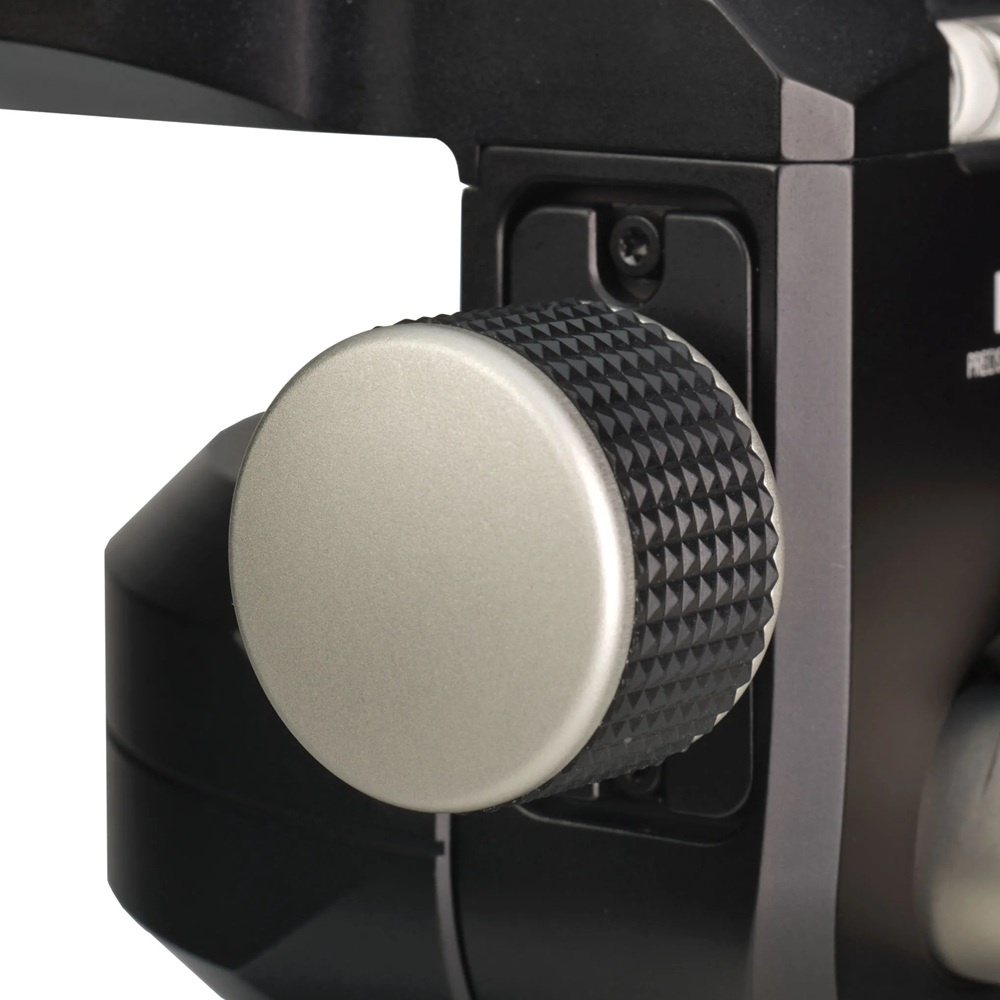

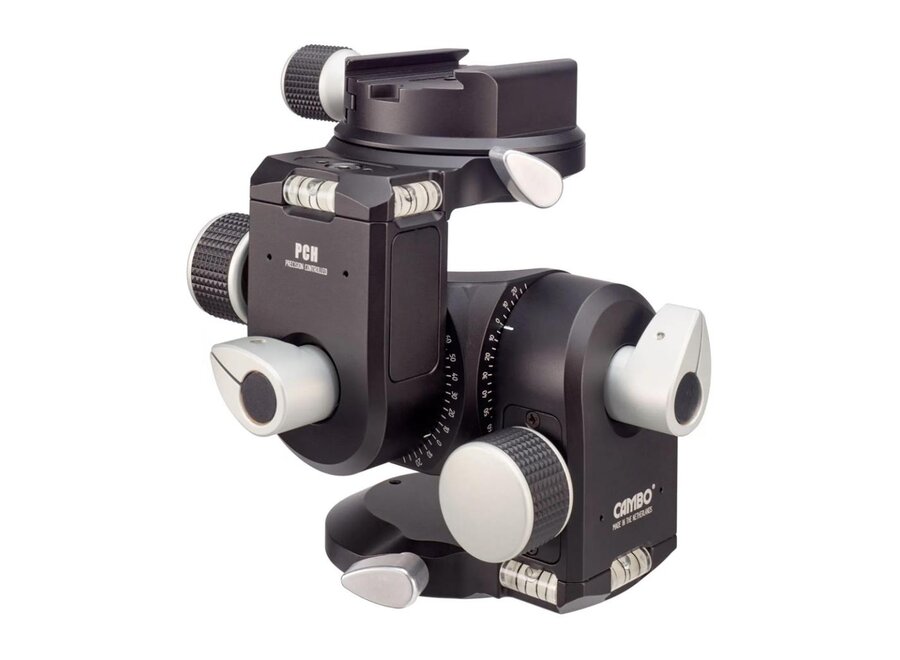

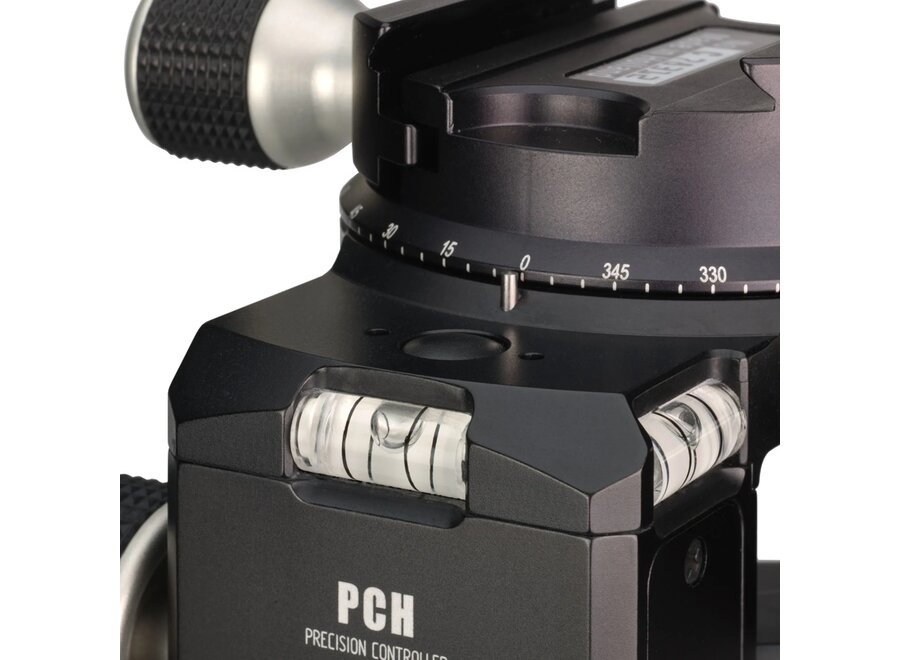

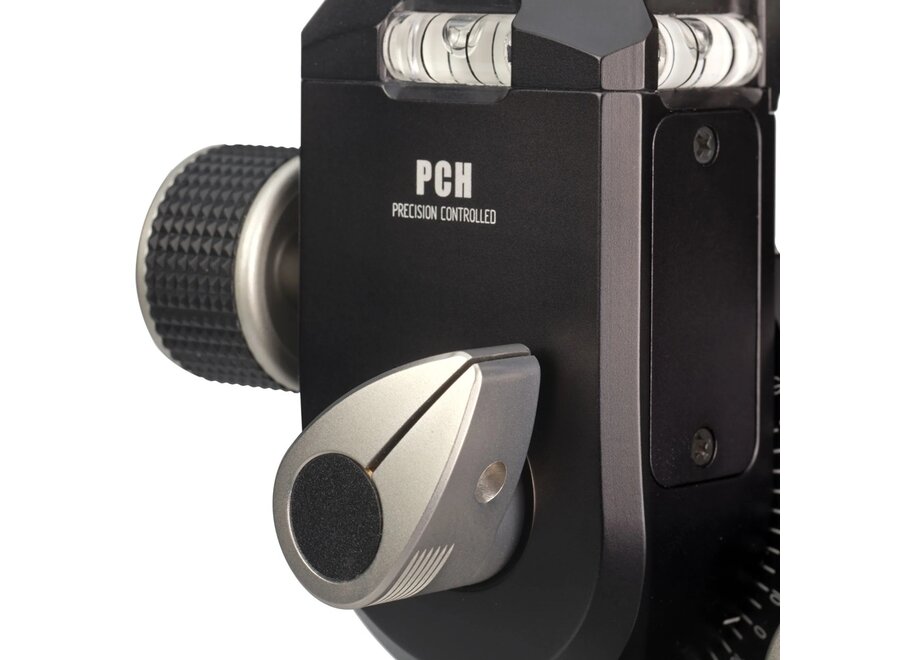

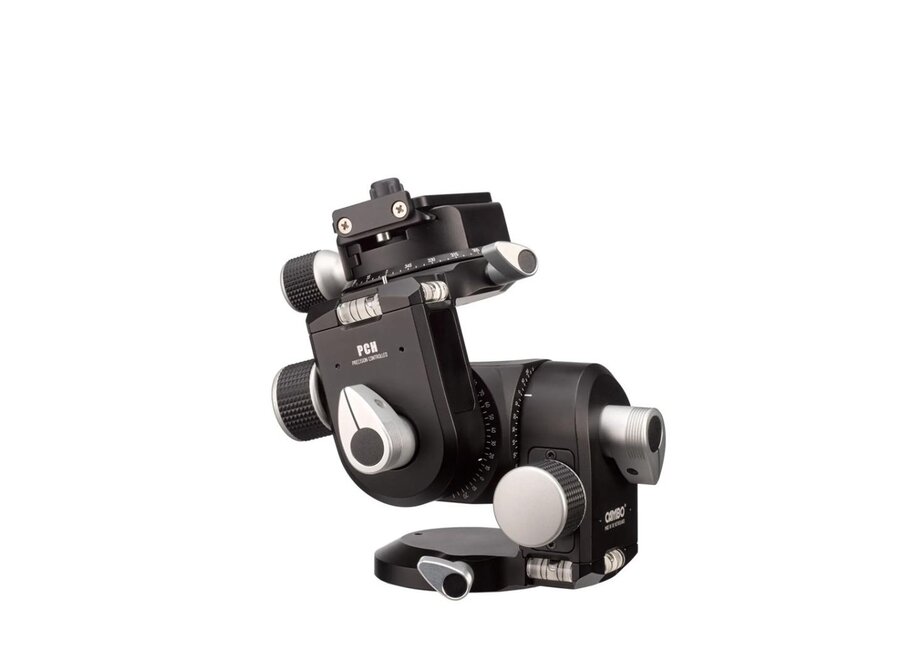

Cambo PCH Camera Head

The PCH and PCF geared heads combine the speed of a ball head with the fine tuning only fully geared heads can offer.

The geared movements are self-locking and available in any position of the head. The bottom as well as the top rotate 360°. After levelling, the top rotation can be used for panoramic shooting. The optional QR-XL extra long quick release plate may be added to facilitate rotation around the nodal point.

Any camera with an ARCA-style mounts directly onto the PCH. This includes the Cambo ACTUS and Cambo WRS-series. The PCH comes with an 1/4" QR plate.

PRODUCT FEATURES: Cambo PCH Camera Head
• 360º manual panning on top and bottom plate
• Position click indication every 90º on top and bottom plate
• 140º X-axis tilt (30º backward 110º forward)
• Separate manual (fast) or gear (fine) movement around the X-axis
• 140º Y-axis pivot (30º backward 110º forward)
• Separate manual (fast) or gear (fine) movement around the Y-axis
• X, Y and Z axes rotate about the same point
• When the X, Y and Z axis lock knobs are open, the PCH can move freely as a normal spherical head. • Adjustable gear friction
• Adjustable manual friction
• Arca compatible QR clamp
• 4 large bubble levels
• Durable stainless steel 3/8'' and 1/4'' tripod mounting options.

DIMENSIONS: Cambo PCH Camera Head
• Height 130mm (incl. QR plate)
• Width 110mm
• Depth 102mm
• Weight 1200g
• Payload 6kg (13.2lbs)

IN THE BOX:

• 1 x Cambo PCH Camera Head
