Compact Ceiling track system 5.0 x 5.0m + 5 pantographs

€7.299,93 Incl. tax

  • Article code: BA15010

Out of stock

Delivery time:1-2 weeks if in stock by manufacturer

The light & studio specialist

Ordered before 16:00, shipped the same working day

More than 3000 products

Expert staff with practical experience

Product description

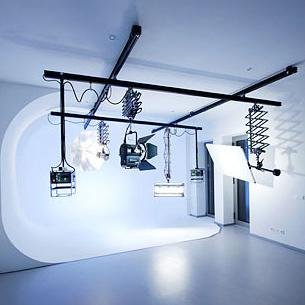

This compact ceiling track system is especially developed for smaller-sized photostudios. It fulfills the highest profesional requirements for both quality and flexibility and offers an optimum price/performance ratio. The system is based on a newly developed shaped rail, which is especially easy to bolt together and assemble. The low assembly workload is positively noticeable, especially when moving.

The quality of a ceiling track system proves itself over years of trouble-free use. The system components and the accessories are all ideally coordinated from the rail to the pantograph. The manually operated system guarantees simple handling and maximum safety.

Table of Loads

Span l

m

2

2,5

3

3,5

4

4,5

5

5,5

6

7

8

Lumped load F max.

N

5620

4500

3160

1710

1410

1410

1140

940

790

580

440

Line load q max.

N/m

5620

2910

1690

1060

710

500

360

274

210

130

90

Deflection f

mm

10

12.5

15

17.5

20

22.5

25

27.5

30

35

40

IN THE BOX: Compact Ceiling track system 5.0 x 5.0m

  • 2 x Compact Length rails 5 m
  • 4 x Compact Cross rails 5 m. Diagonally adjustable
  • 5 x pantograph
  • Connection material
