Manfrotto Alu Video System MVK504AQ

Product description

Manfrotto Alu Video System MVK504AQ

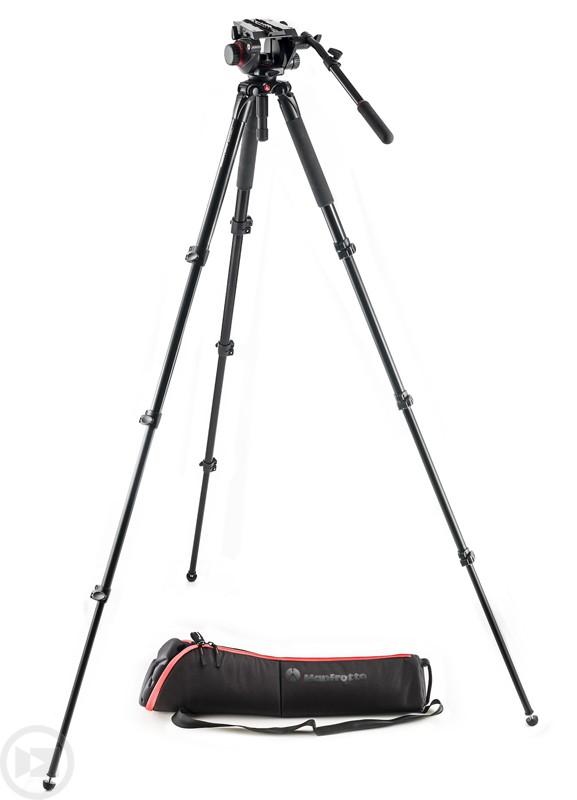

The Manfrotto Alu Video Fluid System MVK504AQ includes the 504 fluid video head (504HD) and the aluminum single leg Tripod (MVT535AQ). The system is supplied with a padded carrying bag.

The 504HD is a fluid video head that combines high performance variable fluidity with a wide variety of professional features, including 4-steps (0.2.5kg-5.5lb, 5kg-11lb and 7.5kg-16.5lb) counterbalance system, ergonomic positioning of all knobs for tilt, drag and locking on the left side of the head, illuminated levelling bubble and replaceable pan-bar rosettes. The 504HD is designed to support the latest generation HD cameras weighing up to 12kg(26.4lbs) and counterbalancing up to 7,5Kg 816.5lbs). The 504 HD has a 75 mm half ball tripod mount.

The MVT535AQ aluminum single leg tripod features 4 sections and a 75mm half bowl. It also includes the MVA060T adapter that converts the 75mm into a 60mm half bowl. It is a sturdy and reliable solution, compact and easy to use. The 535’s leg angle selectors allow each leg to be independently set quickly and easily (3 steps: 23°-50°-70°). The key feature of this tripod is its flexibility in terms of operating height (from 22.8 cm/8.9 in up to 171cm/67.3in).

PRODUCT HIGHLIGHTS: Manfrotto Alu Video System MVK504AQ
- Variable Fluid Drag System on PAN and TILT movements
- Variable Counterbalance system on TILT movement
- Sliding plate for the fastest camera connection and set up
- ø 75mm ball for levelling
- Pro single leg tripod for versatile operating height

PRODUCT SPECIFICATIONS:Manfrotto Alu Video System MVK504AQ

• Weight 6600 g
• Material Aluminium
• Safety Payload Weight 12 kg
• Min Height 36.5 cm
• Maximum Height 179 cm
• Head Type Video/Fluid Head
• Leg Sections 4
• Legs Tube Diameter 20, 25, 29.5, 35.4 mm
• Quick Release Yes
• Counterbalanced Weight 7.5 kg
• Center of gravity 55 mm
• Closed Length 73 cm
• Ball Flat Ball
• Accessory Compatibility 114, 127V, 127VS, 502HLV, 509HLV
• Top Attachment 1/4" screw, 3/8" screw
• Base Diameter 75 mm
• Powered by (batteries) Lithium.
• Bubble Spirit Level (No.) 1
• Carrying Bag Included MB MBAG80PM
• Center Column no centre column
• Certifications WEEE; RoHS
• Color Black
• Easy Link Yes
• Front Tilt -60°/ +90°
• Leg Type Single
• Leg Angles 23°, 50°, 70°
• Leg Lock Type Flip Lock
• Maximum Working Temperature 60 C
• Minimum Working Temperature -20 C
• Pan Bar Included Yes
• Pan Drag continuously adjustable from 0 to max level
• Panoramic Rotation 360
• Plate Type 509HLV
• Tilt Drag continuously adjustable from 0 to max level

IN THE BOX:

• 1 x Manfrotto Alu Video System MVK504AQ
