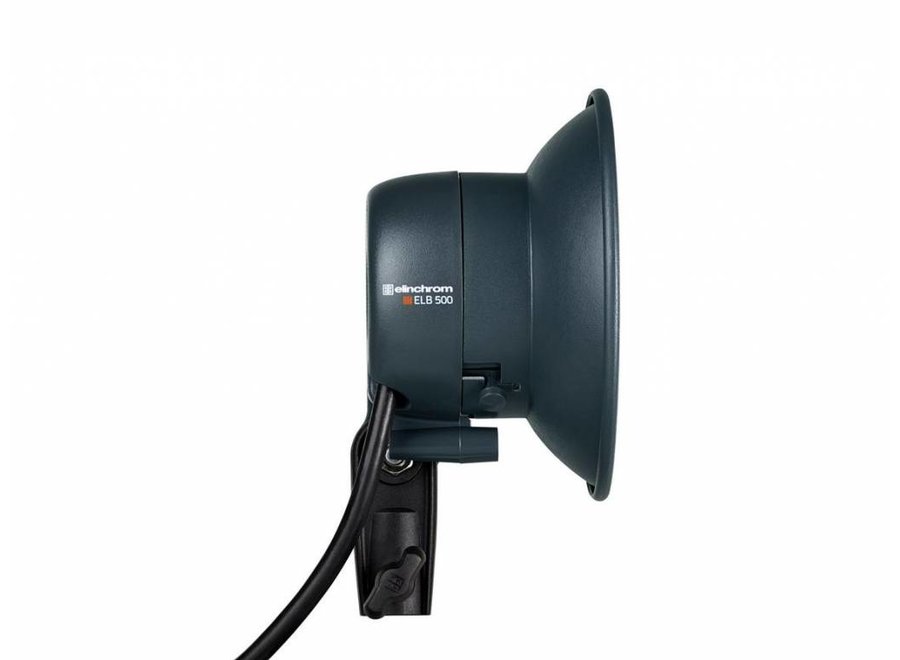

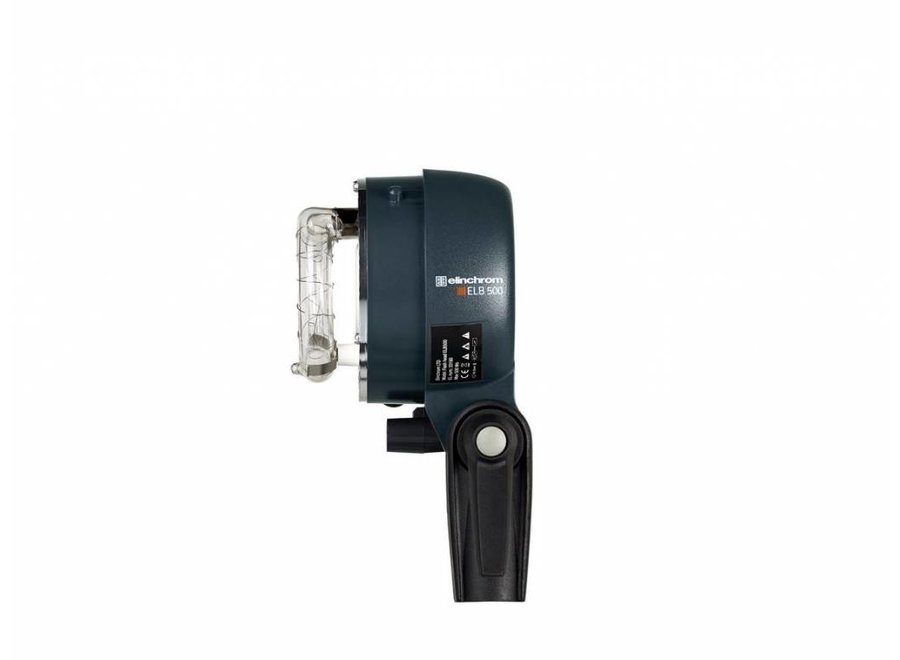

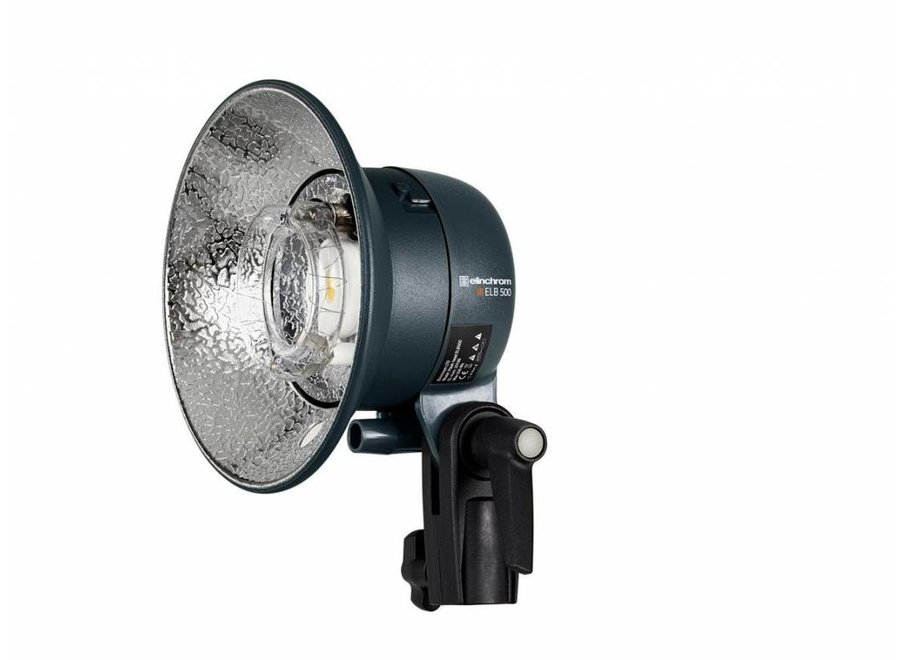

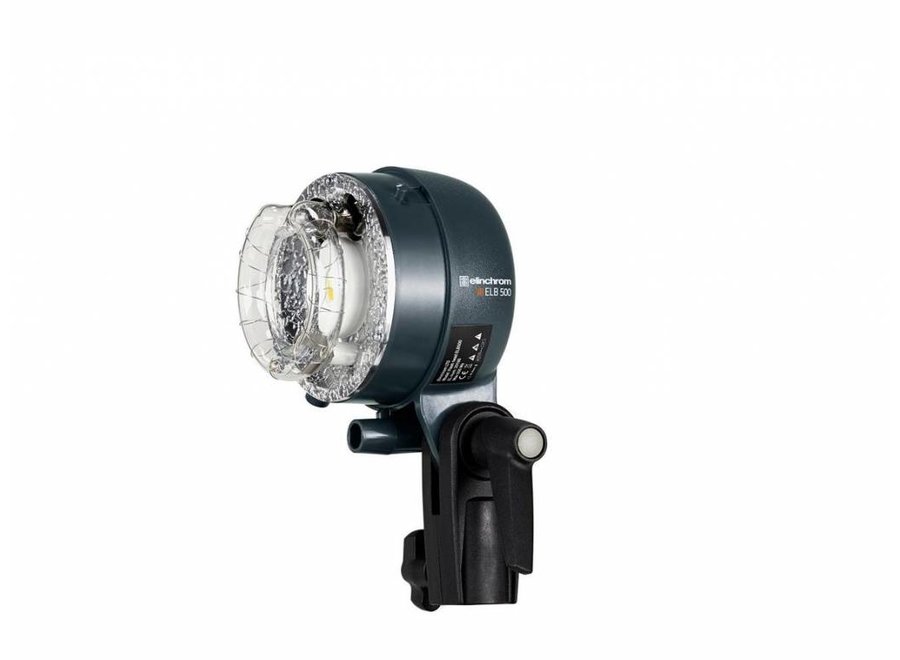

Elinchrom ELB 500 TTL lamp head

The Elinchrom ELB 500 TTL is a professional mobile flash for use on location where there is no power outlet, or in the studio on the mains. The flash can work in TTL or manually. Compatible with Canon, Nikon, Fujifilm, Sony, Olympus and Panasonic cameras.
Article number: EL20190

Excl. VAT

Availability: In stock
Delivery time: 1-2 days

Elinchrom ELB 500 TTL lamp head


One head for all needs to make photographer choices easier than ever.

The ELB 500 TTL head is smaller than speedlites yet delivers 10 times more power. It is lightweight enough to be mounted on a camera bracket or boom arm while on location. Supplied with a 2.5 m flash cable and a protective cap.

This concerns a lamp head to be combined with the ELB 500 TTL systems*, but can also be combined with the ELB 400 if desired. The lamp can have a flash output of 500 Ws. with a color temperature of 5500 K. In addition to a high-quality flash tube, the lamp head is also equipped with a dimmable balanced daylight LED, with a CRI value of 89.8. so that it can also be used for video work. Just like with Elinchrom, this lamp head can also be combined with all Elinchrom light shapers. Thanks to the maximum flash power, it can also be combined with the larger light shapers (such as LiteMotiv Softbox ø 190). Because the lamp head itself is compact in size, use an adapter ring. like the EL26232.

The lamp has a standard light angle which is higher than 180°, so you as a user are assured that you will achieve the highest efficiency of your lamp and the light shapers.

- Color gray (primary)
- Color temperature at Max. Power 5500° K
- Energy 500 Ws / J
- F-stop (1m, 100 ISO, reflector 48 °) 64.8
- Shortest flash with Power setting 7.1
- Flash duration 20000 s
- Height: 8 cm
- Hi-Sync compatibility Yes, with Elinchrom Pro transmitter
- LED CRI 90
- LED modeling Lamp Watt / lumen 14 W
- Length 16 cm
- Material ABS plastic
- Dimmable modeling lamp 40 steps
- Modeling the lamp mode On / Off, free, prop, timer 1-60 sec., VFC
- Power range F-stop 7
- Supplied with 2.5 m cable, flash tube, LED setting lamp + protective cover
- Tilt Head Adapter 5/8 "
- Umbrella-fitting 7 mm
- Weight (max.) 0.660 kg
- Weight 0.610 kg
- Width 9 cm


  • 1 x Elinchrom ELB 500 TTL Lamphead, complete with;
    • 2.5 m cable
    • Flash tube
    • LED modeling lamp
    • Protective cover
    • Elinchrom 13.5 cm RQ Reflector 70°

* The ELB 500 TTL from the Swiss brand Elinchrom is an ALL-IN ONE lighting system for the photographer and videographer. The set works on both mains and battery power. Is lightweight and ultra compact in size. The ELB 500 TTL unit is equipped with TTL capability. The flash power is 500Ws, and can be divided asymmetrically over 2 lamp outputs. The lamp head is equipped with a dimmable video light 5500K (CRI 89.8) and fully compatible with all Elinchrom light shapers. Combination with speedlites, set-up flashes possible.
