MIXBOOK Digital Swatchbook

Product description

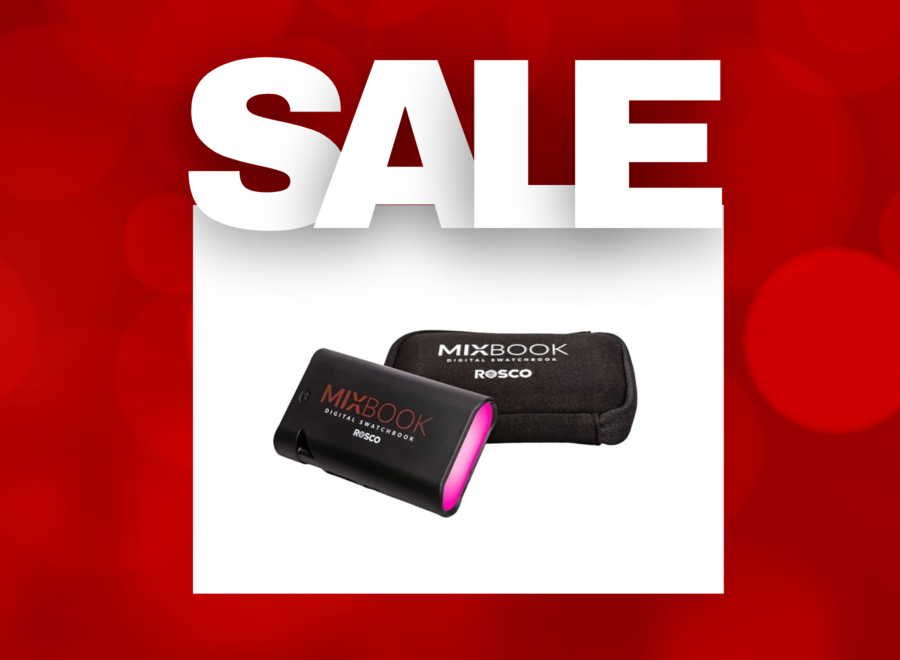

MIXBOOK Digital Swatchbook

The MIXBOOK from DMG Lumiere & Rosco is a digital Filterbook that allows users to visualize their gel and LED colors in advance and then make those color choices.

MIXBOOK incorporates the same LED technology as in MIX® fixtures from DMG Lumiere that ensure perfect color similarities between their MIXBOOK and all MIX lamps.

The MIXBOOK is managed by the myMIX ™ app. The app allows users to generate their desired color by adjusting hue, saturation and intensity levels, or by selecting xy values ??and then sending that color to MIXBOOK. Through a Bluetooth connection with the myMIX app, MIXBOOK allows users to actively explore the performance of their color choices in an environment and to keep changing them through the app. Once the desired color is achieved, users can save their colors in the cloud and share it with their team.

PRODUCT SPECIFICATIONS:
- Dimensions: 10 x 6 x 2.6 cm
- Weight: 110 g
- Operating temperature: -20 ° C to 40 ° C
- Color temperature range: 1700 ° K to 10,000 ° K
- Flicker-free Up to: 200 i / sCRICRI
- Average:> 95 TLCI-IITLCI
- Average:> 90 - - Colored light
- Full color range with hue, saturation and white basic control
- Gels Genuine Rosco Color ™
- Gel matches Green-Magenta adjustment
- Steplessly adjustable (Full Minusgreen to Full Plusgreen) Finish color
- Matt black / Packaging; Neoprene pouch with strap
- Mounting options: 1/4 inch internal thread, hole for spring hook
- Housing material: ABS + PC plastic
- Humidity tolerance: IP20
- Lighting technology: 100 lux @ 0.5 m
- Input voltage: 5 VDC
- Energy consumption: 2 W
- Power connections: Micro USB
- Control system: Bluetooth via myMIX app (iOS & Android)\

Click on the VIDEO tab to see the demo videos!

IN THE BOX:

• 1 x MIXBOOK Digital Swatchbook

DOWNLOADS:

• Rosco MIXBOOK user manual
• Rosco MIXBOOK Quick Start Guide
• Rosco MIXBOOK CE Declaration
• Rosco DATA SHEET MIXBOOK
• Rosco MIXBOOK Drawings
