Elinchrom Skyport Transmitter PRO voor Canon

Product description

Elinchrom Skyport Transmitter PRO for Canon

With the Elinchrom Skyport PRO Transmitter for Canon you can go in HSS, HS e/o. TTL photography.

This EL Skyport Transmitter PRO is the newest Transmitter dedicated to Canon users from Elinchrom.

This transmitter offers fast shutter speeds up 1/8000s for Canon cameras using the hotshoe (TTL) contacts.

The PRO Transmitter offers besides the above possibilities, also the TTL possibility in combination with our TTL strobes from Elinchrom, like the ELB 500 TTL. Of course you can always decide for yourself whether you are photographing in TTL or manually, because at Elinchrom the photographer has the choice and not the system!

PRODUCT FEATURES:

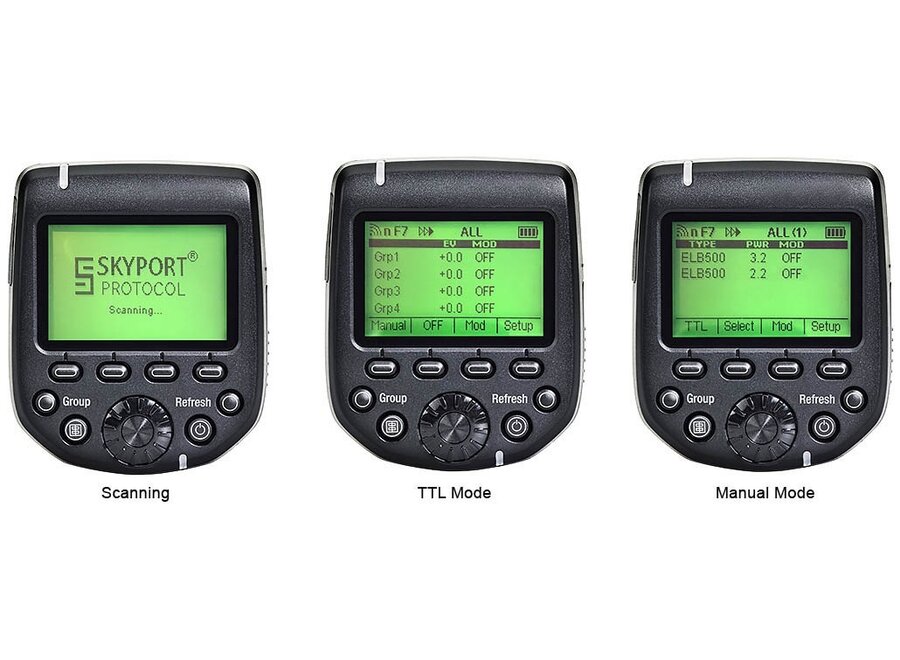

• Large graphic control display
• Backlight in green or red (green for Normal Sync Mode, red for Speed Sync Mode)
• Fast access buttons and rotating wheel for easy control
• Secure Hotshoe connection with bayonet locking system
• Standard 2 AA Batteries (Accepts rechargeable batteries)
• 2.5mm trigger jack output
• Firmware update with integrated Mini-USB socket
• 40 Remote channels
  • 20 frequency channels* in Normal Sync mode
  • 20 frequency channels* in Speed Sync mode
• 4 Groups and ALL
• EL-Skyport Sync Modes

  • Normal Sync Mode -> best distance range
  • Speed Sync Mode -> faster shutter speed on leaf cameras but reduces distance range
  • Standard -> uses the middle contact of the hotshoe so it is limited to X-sync of the camera
  • HS (Hypersync) -> Sync up to 1/8000s, timing delay is automatic
  • ODS (Over Drive Sync) -> fine tune the timing delay to optimize HiSync results (up to 2 more f-stops of light!)
  • Second curtain sync
• AF Light integrated
• Auto MOD
  • Shutter Mode -> half pressing the shutter of the camera turns the modelling lamp on
  • DOF Mode -> pressing the DOF button of the camera turns the modelling lamp on
• REMOTE Control** with automatic feedback from Elinchrom flash units
  • EL - flash units*** can be controlled "All" together, in "Groups" or "single" units
  • Flash power up & down
  • Modelling lamp on/off or power up & down
• Sleep mode and Auto OFF mode programmable
• Manufacturing RESET
• Distance range 200 m outdoors, 60 m indoors.

* For all newer Elinchrom flash units with 20 frequency channels
** For all Elinchrom flash units with integrated EL-Skyport Receiver and Transceiver
*** For all RX units and newer ELB, ELC

SPECIFICATIONS:
- Color (primary) Black
- Material PC ABS Plastic
- External Height 760 mm
- External Length 840 mm
- External Width 690 mm
- Skyport Type EL-Skyport Transmitter Plus HS - Canon
- Supplied With 2x AA Batteries, 1x Mini USB cable, Quick Guide
- Sync Voltage 3 V
- Weight (max.) 0.170 kg
- Weight (empty) 0.120 kg

Click on the VIDEOTab above to see the demo videos!

IN THE BOX:

• 1 x Elinchrom Skyport Transmitter PRO for Canon

Elinchrom Transmitter PRO - Compatibility list
